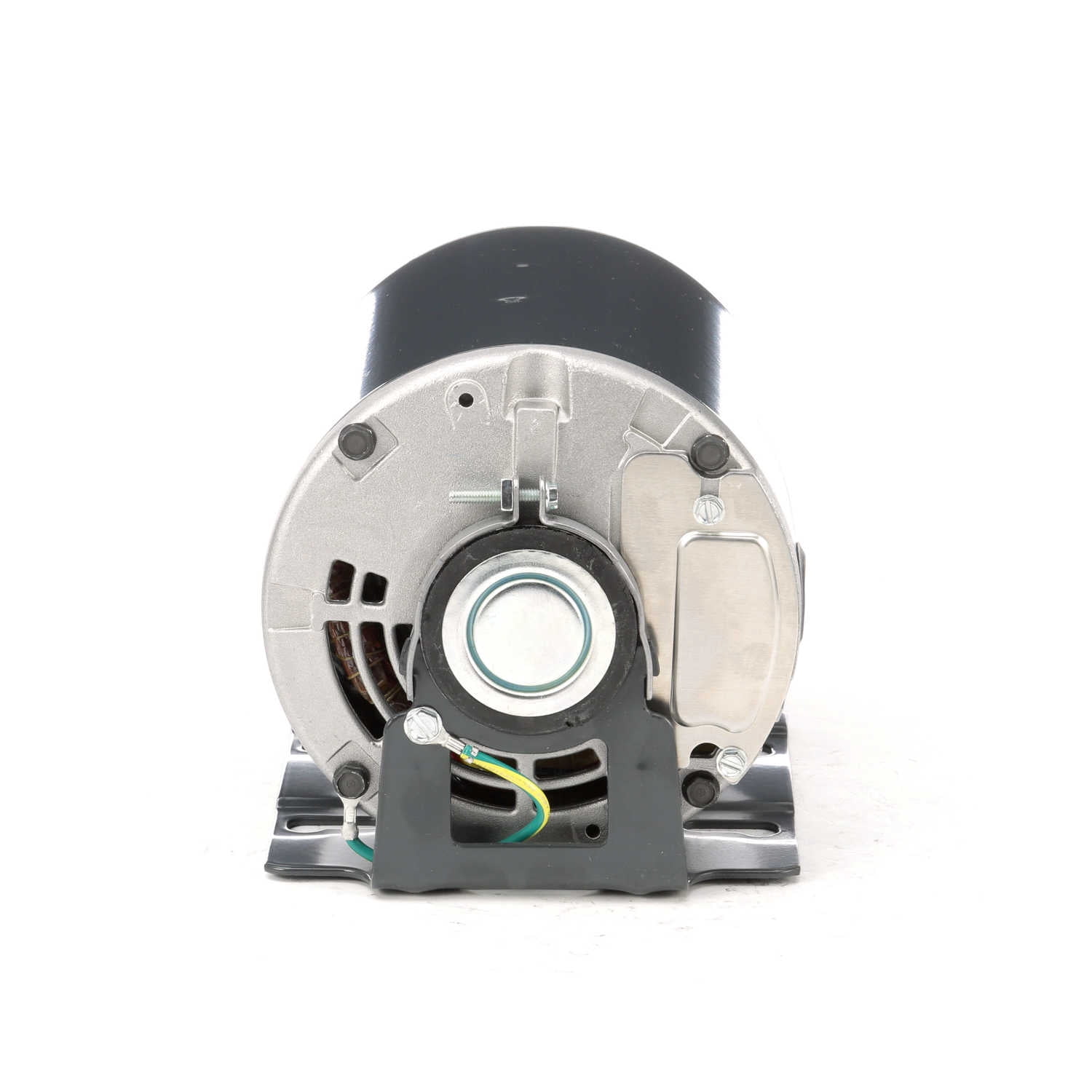

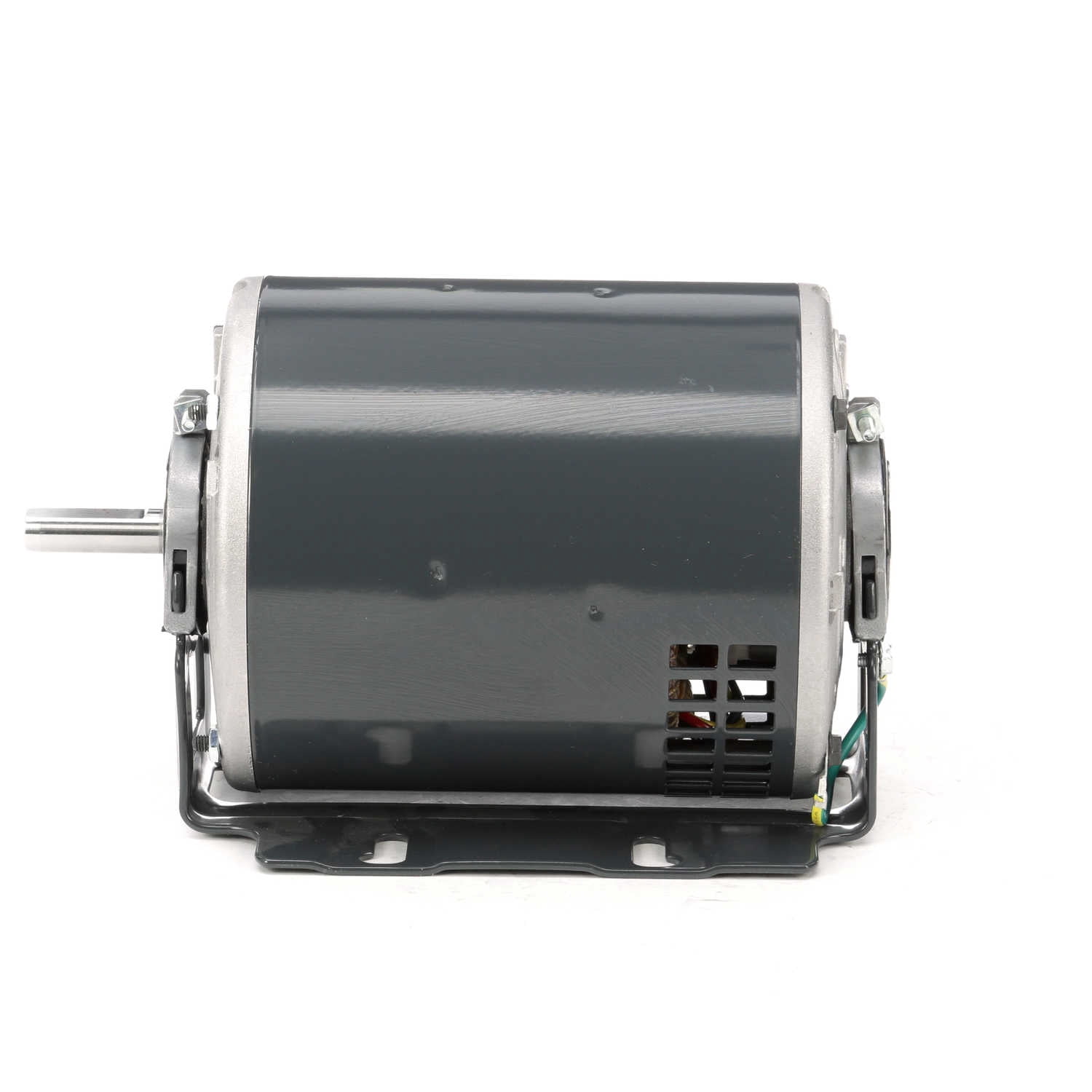

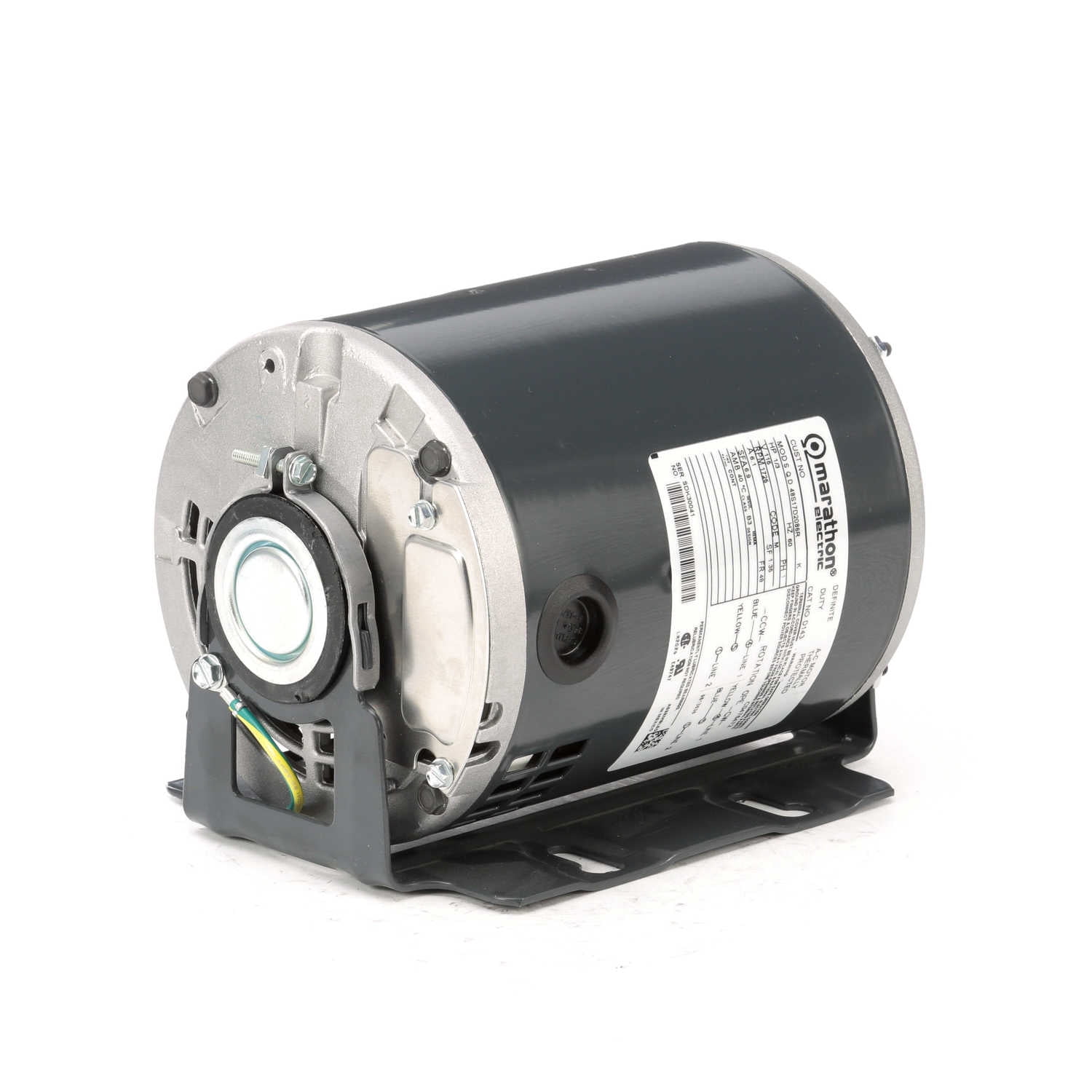

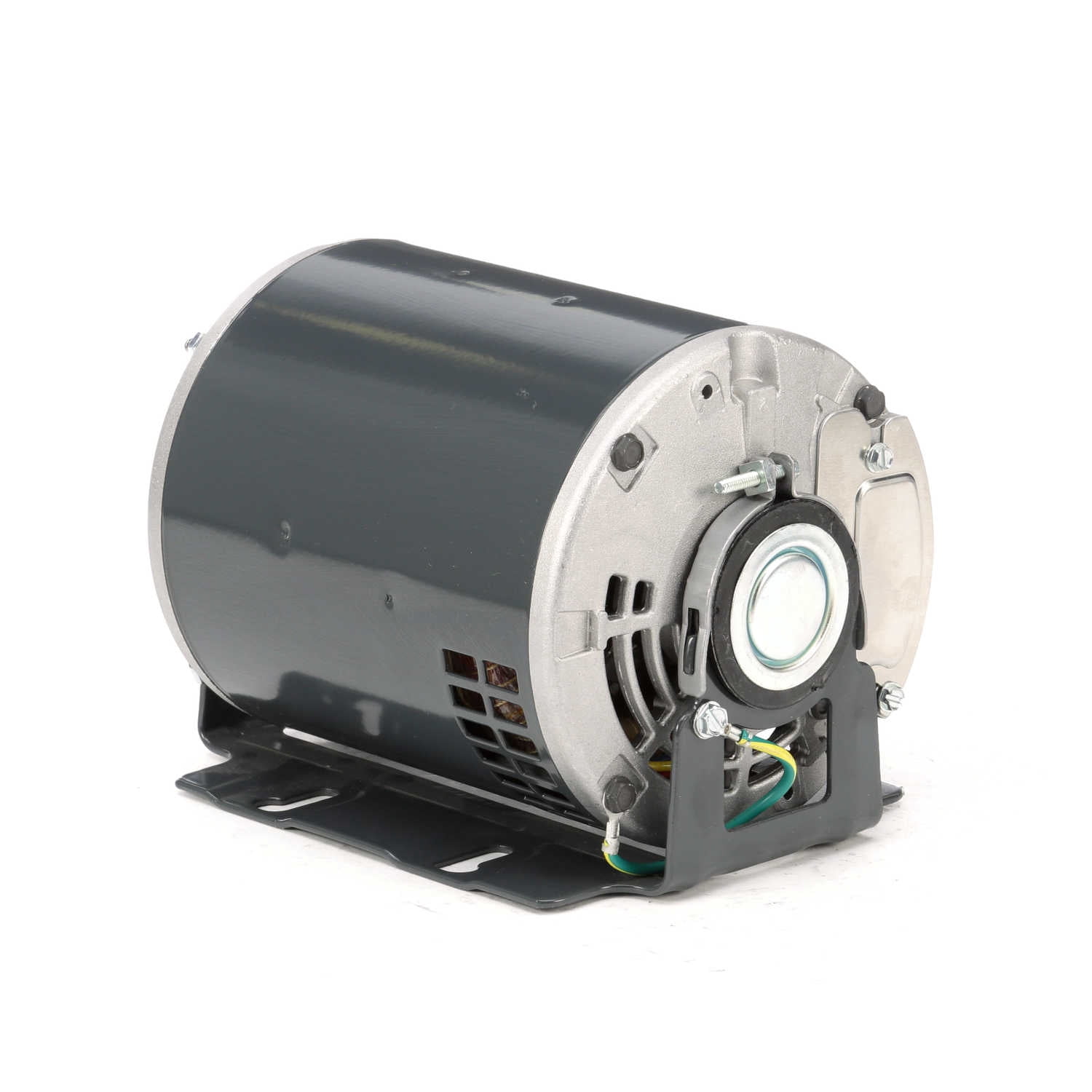

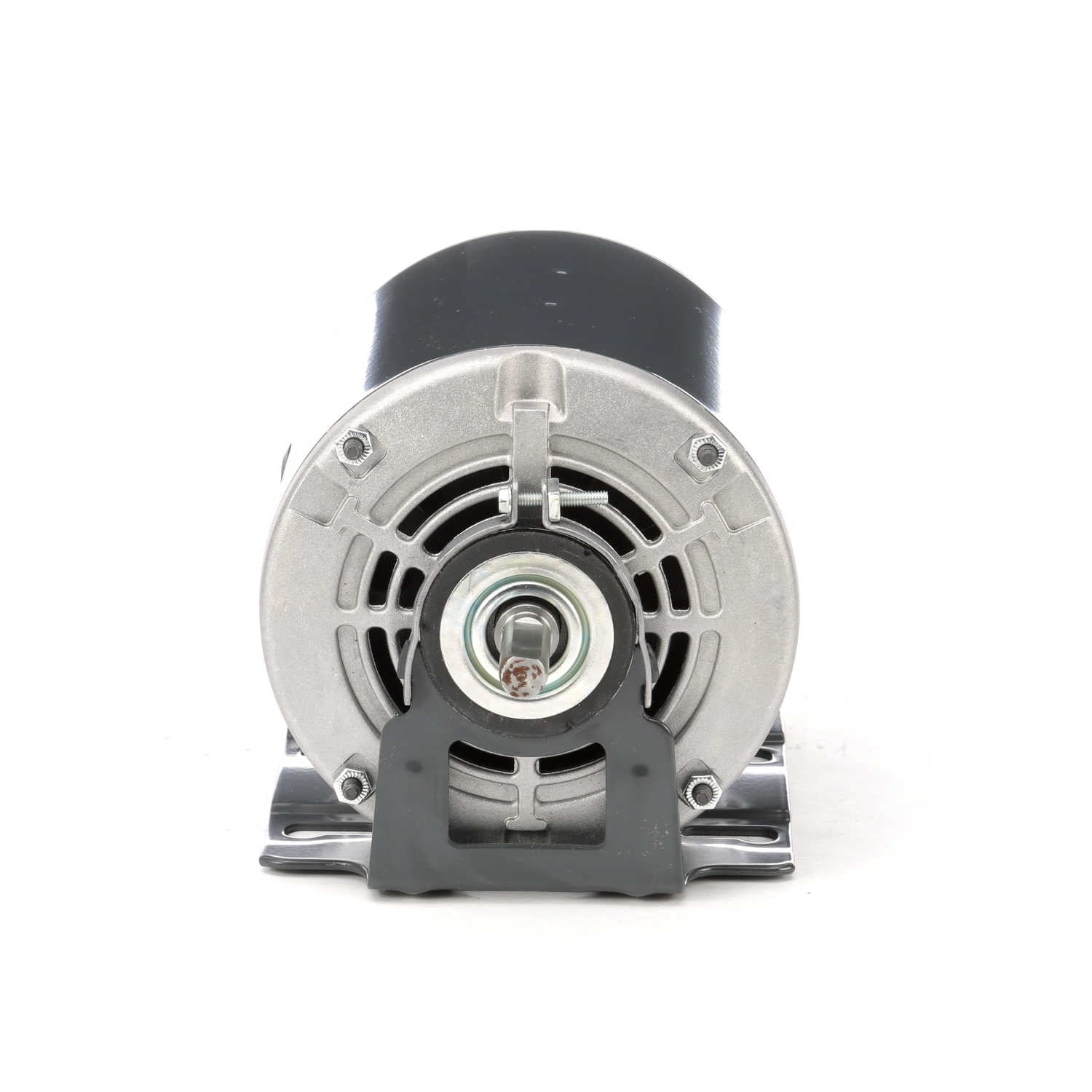

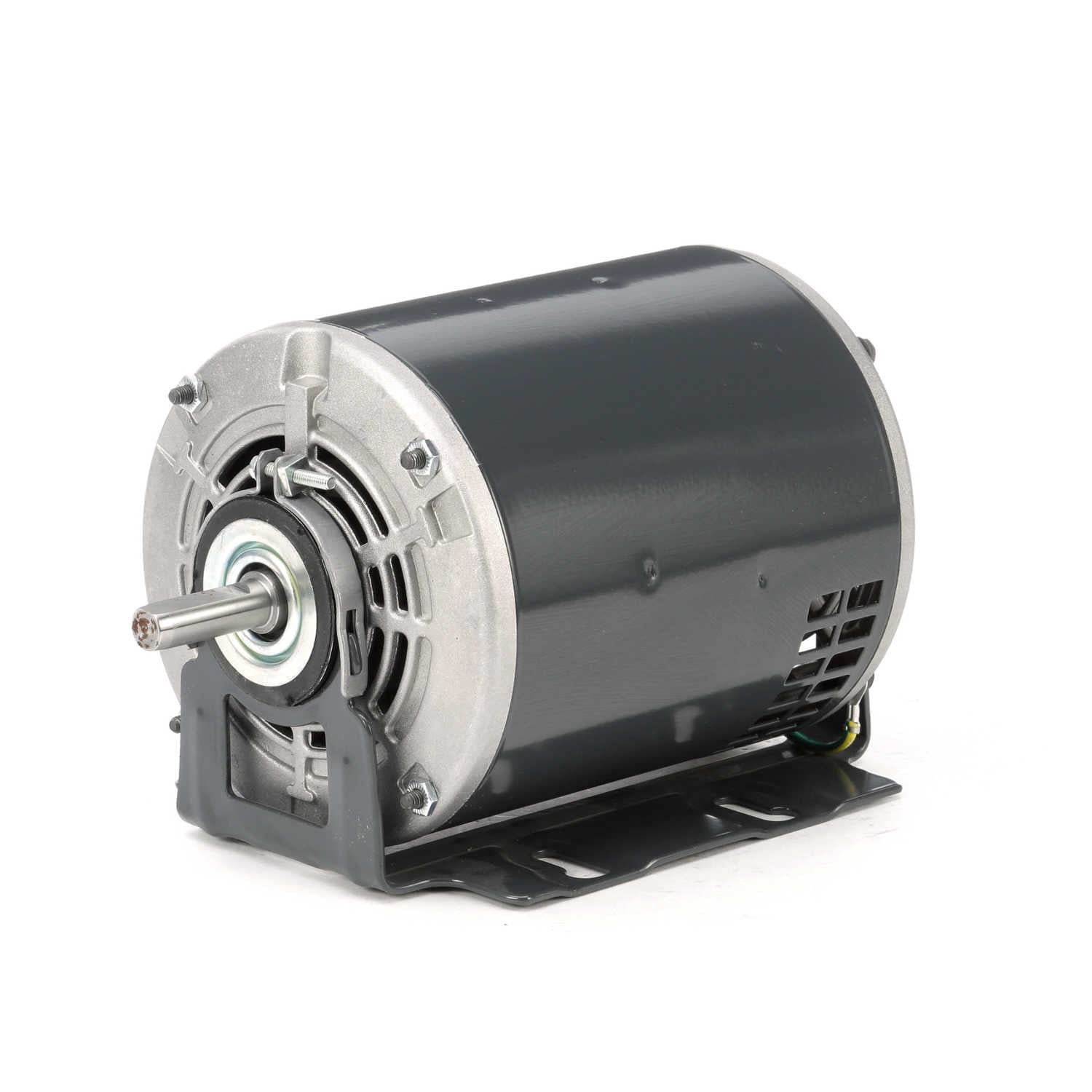

Marathon D143 Electric Motor 1/3 HP 1725 Rpm 1PH 115 Volt 48 Frame 048S17D2086
Product details
| Management number | 230748606 | Release Date | 2026/06/18 | List Price | US$89.04 | Model Number | 230748606 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This Marathon 48S17D2086 belt drive motor is single split phase with one-speed operation. It runs at 1/3 hp, with a maximum speed of 1725 rpm. It operates at 115 VAC, 6.1 Amp. The motor has a 48Y frame with open drip proof (ODP) enclosure, resilient ring mounting, and ball bearing system. It has auto protection. Weight is 15 pounds.
- Horsepower: 1/3 HP (0.33 HP)
- Output Speed: 1725 RPM (1800 RPM synchronous)
- Phase: Single phase
- Frequency: 60 Hz
- Voltage: 115 V
- Full Load Amps: 6.1 A
- Frame: NEMA 48
- Mounting: Resilient base
- Enclosure: Open Drip Proof (ODP / DP)
- Motor Type: Split phase
- Service Factor: 1.35
- Efficiency: 62%
- Duty Rating: Continuous duty
- Insulation Class: B
- Shaft Diameter: 1/2 inch (0.500 in)
- Shaft Extension Length: 1.59 inches
- Bearings: Ball bearings, drive and opposite ends
- Rotation: Selective counterclockwise
- Thermal Protection: Automatic overload
- Ambient Temperature Rating: 40°C
| Horsepower | 0.33 HP |
|---|---|
| Electric motor type | AC Motor |
| Electrical phase | Single Phase |
| Volts | 115 VAC |
| Maximum motor speed | 1800 rpm |
| Amps | 6.1 Amps |
| Brand | Marathon Electric |
| Has nrtl listing certification | N |
| Model | MD143 |
